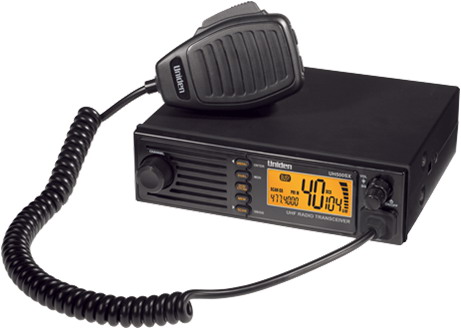

Uniden UH500SX Din Size UHF CB Radio


Price: $329.00
Availability: in stock
Prod. Code: UH500SX

The UH500SX UHF Unit is in a class of its own replacing the number 1 selling model – the UH088sx. Uniden’s reliability and experience in UHF makes this unit ideal for the professional who needs to keep in touch with the outside world. The UH500SX-RM offers the finest components, engineering and styling, just what you would expect from Uniden.

The UH500SX has an extra 40 user programmable RX channels available making listening to your favourite frequencies (450 to 512MHz in 12.5Hz steps) easier. With a Rear MIC Jack located at the back panel for discrete connection of the standard or remote LCD speaker microphone.

The UH500SX is also equipped with DCS (Digital Coded Squelch) allowing you to choose from 104 alternative digital codes that can be sent with your transmission. The digital code is recognised by the compatible receivers enabling them to receive or block unwanted conversations. For additional conversation privacy the UH500SX-RM also has CTCSS Interference Eliminator allowing you to block out unwanted conversations. It also has Range Extender (Duplex) Capability giving you long range depending on the location of local repeater stations. The keypad and LCD display is backlit orange for extra easy viewing at night or in low light situations.

  • Built for Rugged Australian and New Zealand Conditions
  • Backlit Keypad and LCD Display
  • 40 UHF Channels
  • 40 User Programmable RX Channels
  • 40 extra receivable channels (450 to 512MHz in 12.5kHz steps).
  • 5 Watts Maximum TX Output Power: Maximum transmit power
  • Rear MIC Jack: A secondary microphone jackis located at the rear panel for discreteconnection of the standard or optional Remote LCD Speaker Microphone (the microphone cable can be extended with an optional 2m long extension kit EC100).
  • Backlit Keypad and LCD Display
  • Mobile/E-DIN Size
  • Front Fire Speaker: Speaker is mounted at the front of the unit, allowing better sound quality.
  • The keypad and Liquid Crystal Display (LCD) is backlit for easy viewing at night or in low light situations
  • Features a 3 level dimmer function.
  • RF Level Bar Indicator: View the radio frequency signal strength.
  • One Touch Instant Channel Recalling
  • Range Extender (Duplex) Capability
  • Interference Eliminator (38 CTCSS Codes): Block out unwanted conversations.
  • Digital Coded Squelch (DCS)
  • Open Scan
  • Group Scan (GS) with Priority Channel Watch
  • Dual Watch
  • Busy Channel Lock Out Function
  • Roger Beep
  • Call Tone Function
  • VOX Hands Free Capable
  • Remote LCD Speaker Microphone Capable
  • External Speaker Jack
  • 2 Year Australian Warranty

What's In the Box?

  • 1 x UH500SX UHF Radio
  • 1 x Standard Microphone
  • 1 x Microphone Hanger
  • 1 x Mounting Bracket
  • 1 x DC Power Cord with Fuse
  • 1 x E-DIN Sleeve
